SCP350/23S

Max. load capacity: 3500kg
Mast quantity: dual
Platform length: 8.1~23.1m
Lifting speed: 7m/min
Quantity:

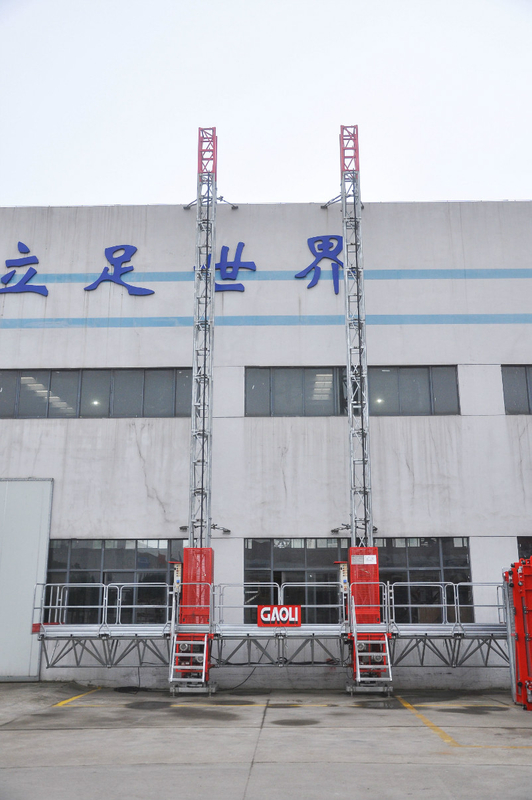

GAOLI mast climbing platforms are an efficient mobile solution to vertical transportation of people and materials. The versatility of our mast climbers makes them the equipment of choice for a number of construction jobs. Thanks to the electrically driven chassis, it is easy to move the mast climber around the construction site. The dimensions and shape of the platform can quickly be adjusted to the project’s needs.

GAOLI mast climbing platforms  adopts rack-and-pinion transmission. For so many years, having digested domestic and foreign advanced technology and innovated, it has become newly designed, compact structure, convenient operation, easy installation and disassembly, beautiful shape and reliable performance.




WHY RACK & PINION SYSTEM?

No shaft is needed.
No machinery room is needed.
No ropes or sheaves are required.
Suitable for external and internal application.
Greater resistance to windy and hostile environment.
Higher factor of safety.
Low operation cost and minimum maintenance.
Easy erection from the Cage roof.

Key benefits of GAOLI products:
Durable and reliable due to first class materials and components
Multiple safety features
Modern and advanced technologies, continuous development and high efficiency
Custom designs and platform modifications according to customer requirements

Why GAOLI Mast Climbing Platforms
?
GAOLI
mast climbing platforms   are world renowned and perform reliably in many countries and in extreme weather conditions worldwide.
Continuous research and development, excellently equipped production facilities, first class components and materials, and an individual approach to customer needs are factors that contribute to the outstanding performance of our product.
   Technical data SCP350/23S
   Platform length range 8.1~23.1m
   Platform width 1.5m
   Max. freestanding height 10m
   Distance between anchors 6m
   Max. height with mast anchored  150m
   Max. mast height above last anchor 3m
   Max. quantity of  passengers 6
   Lifting speed 7m/min
   Max. loading capacity 3500kg
   Mast sections 1.5/150kg
   Motor power 2×2×2.2KW
   Supply voltage 3 phase/380~415V

• FACADE WORK
• BRICKLAYING
• PLASERING
• BALCONY WORK
• WINDOW INSTALLATION
• SHIPYARD WORK
• BRIDGE WORK
