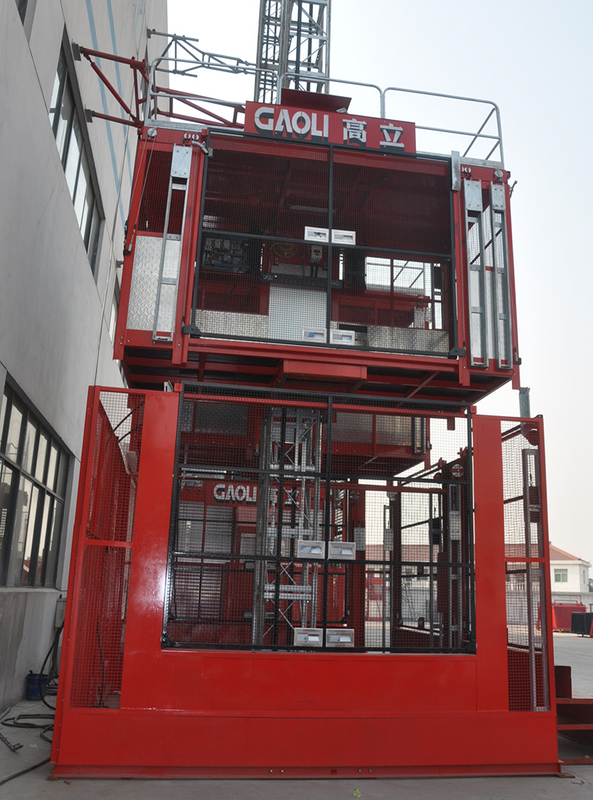

General Construction hoist is also called building construction elevator, rack and pinion construction elevator or man and material hoist. It is widely used as construction machinery to lift people and building materials.
Construction hoist is mainly used in the internal and external decoration, bridge building, chimney, curve etc.
SC series Construction Hoist/Elevators/Lifts adopts rack-and-pinion transmission. For so many years, having digested domestic and foreign advanced technology and innovated, it has become newly designed, compact structure, convenient operation, easy installation and disassembly, beautiful shape and reliable performance.
Product Feature: • Safety brake on transmission system of each hoist car • Electronic and mechanical door interlocks on hoist cars and base enclosure doors. • Safety hooks assure hoist car is securely attached to mast. • Stop and final limit switches that limit hoist car when reaching the end positions. • Phase failure replay system prevents hoist operation unless correct phase sequence is connected. • Heavy-duty overspeed governor which activates safeties that clamp directly onto mast legs • Overload detector to prevent hoist from loading passenger or material more than allowed. • Fault diagnostics system with display panel • Emergency cut-off system. • Spring buffers. • NO counterweights required.
WHY RACK & PINION SYSTEM No shaft is needed. No machinery room is needed. No ropes or sheaves are required. Suitable for external and internal application. Greater resistance to windy and hostile environment. Higher factor of safety. Low operation cost and minimum maintenance. Easy erection from the Cage roof.
Key Benefits of GAOLI products: Durable and reliable due to first class materials and components Multiple safety features Modern and advanced technologies, continuous development and high efficiency Custom designs and platform modifications according to customer requirements
Why GAOLI Elevators and Hoists? GAOLI construction hoists are world renowned and perform reliably in many countries and in extreme weather conditions worldwide. Continuous research and development, excellently equipped production facilities, first class components and materials, and an individual approach to customer needs are factors that contribute to the outstanding performance of our product.
General Construction hoist is also called building construction elevator, rack and pinion construction elevator or man and material hoist. It is widely used as construction machinery to lift people and building materials.
Construction hoist is mainly used in the internal and external decoration, bridge building, chimney, curve etc.
SC series Construction Hoist/Elevators/Lifts adopts rack-and-pinion transmission. For so many years, having digested domestic and foreign advanced technology and innovated, it has become newly designed, compact structure, convenient operation, easy installation and disassembly, beautiful shape and reliable performance.
Product Feature: • Safety brake on transmission system of each hoist car • Electronic and mechanical door interlocks on hoist cars and base enclosure doors. • Safety hooks assure hoist car is securely attached to mast. • Stop and final limit switches that limit hoist car when reaching the end positions. • Phase failure replay system prevents hoist operation unless correct phase sequence is connected. • Heavy-duty overspeed governor which activates safeties that clamp directly onto mast legs • Overload detector to prevent hoist from loading passenger or material more than allowed. • Fault diagnostics system with display panel • Emergency cut-off system. • Spring buffers. • NO counterweights required.
WHY RACK & PINION SYSTEM No shaft is needed. No machinery room is needed. No ropes or sheaves are required. Suitable for external and internal application. Greater resistance to windy and hostile environment. Higher factor of safety. Low operation cost and minimum maintenance. Easy erection from the Cage roof.
Key Benefits of GAOLI products: Durable and reliable due to first class materials and components Multiple safety features Modern and advanced technologies, continuous development and high efficiency Custom designs and platform modifications according to customer requirements
Why GAOLI Elevators and Hoists? GAOLI construction hoists are world renowned and perform reliably in many countries and in extreme weather conditions worldwide. Continuous research and development, excellently equipped production facilities, first class components and materials, and an individual approach to customer needs are factors that contribute to the outstanding performance of our product.
• Maganese steel adopted to ensure high strength steel structure. • Modular design facilitates ease of transport, erection and dismantlement. • Collective control system. • For other configurations, contact GAOLI engineering for information.
• Maganese steel adopted to ensure high strength steel structure. • Modular design facilitates ease of transport, erection and dismantlement. • Collective control system. • For other configurations, contact GAOLI engineering for information.
Model
SC320/320
Playload capacity
kg
3200/3200
Speed (50Hz/380V)
m/min
0~36
Max. lifting height
m
450
Rated speed while installation
m/min
36
Erection load capacity
kg
1000/1000
Lifting device capacity
kg
300
Motor power (25% duty cycle)
kw
2×3×15
Max. spacing between tie-ins
m
6
Max. mast height above last tie-in
m
7.5
Hoist car dimension (L×W×H)
m
4.2×2.0×2.5
Mast section type (L×W×H)
mm
650×650×1508
Cage weight (include transmission device)
kg
2×2400
Driving machine weight (bevel wheel)
kg
800
Mast section weight
kg
150 (δ=4.5)
170 (δ=6.3)
190 (δ=8.0)
210 (δ=10.0)
Model
SC320/320
Playload capacity
kg
3200/3200
Speed (50Hz/380V)
m/min
0~36
Max. lifting height
m
450
Rated speed while installation
m/min
36
Erection load capacity
kg
1000/1000
Lifting device capacity
kg
300
Motor power (25% duty cycle)
kw
2×3×15
Max. spacing between tie-ins
m
6
Max. mast height above last tie-in
m
7.5
Hoist car dimension (L×W×H)
m
4.2×2.0×2.5
Mast section type (L×W×H)
mm
650×650×1508
Cage weight (include transmission device)
kg
2×2400
Driving machine weight (bevel wheel)
kg
800
Mast section weight
kg
150 (δ=4.5)
170 (δ=6.3)
190 (δ=8.0)
210 (δ=10.0)
• Adding mast sections does not require special equipment. • For instructions regarding the installation of the model SC100/100 dual car hoist, refer to the manufacturer’s manual. • Specifications and equipment shown are subject to change without prior notification. • This product must be used in a safe manner. Furthermore, the use of this product and its components must be in conformity with manufacturer’s specifications and in compliance with all applicable standards, codes, regulations, etc. • Hoist may have motors and gears mounted inside the car or above the car.
Please refer to manufacturer’s manual when installing, operating, servicing, repairing, jumping or dismantling hoist. For alternate configurations and special applications, contact GAOLI company for information.
• Adding mast sections does not require special equipment. • For instructions regarding the installation of the model SC100/100 dual car hoist, refer to the manufacturer’s manual. • Specifications and equipment shown are subject to change without prior notification. • This product must be used in a safe manner. Furthermore, the use of this product and its components must be in conformity with manufacturer’s specifications and in compliance with all applicable standards, codes, regulations, etc. • Hoist may have motors and gears mounted inside the car or above the car.
Please refer to manufacturer’s manual when installing, operating, servicing, repairing, jumping or dismantling hoist. For alternate configurations and special applications, contact GAOLI company for information.
