Modular construction hoist adopts rack-and-pinion transmission. For so many years, having digested domestic and foreign advanced technology and innovated, it has become newly designed, compact structure, convenient operation, easy installation and disassembly, beautiful shape and reliable performance. collapsible hoist have a special device for use in the construction of large metal containers and to a removable accessory applicable thereto. It facilitates construction procedures by reducing project times and costs. The collapsible device includes a column along which respective upper bodies and lower bodies that have been inserted into said column move. The bodies are linked by an extendable means. The upper bodies and lower bodies have a corresponding mechanism to lock or attach to the column. The column is mounted so that it pivots with respect to a base and the upper body has housing suitable for the insertion of a removable, fingernail-shaped accessory. Key benefits of GAOLI products: Durable and reliable due to first class materials and components Multiple safety features Modern and advanced technologies, continuous development and high efficiency Custom designs and platform modifications according to customer requirements Why GAOLI Elevators and Hoists? GAOLI construction hoists are world renowned and perform reliably in many countries and in extreme weather conditions worldwide. Continuous research and development, excellently equipped production facilities, first class components and materials, and an individual approach to customer needs are factors that contribute to the outstanding performance of our product.
Modular construction hoist adopts rack-and-pinion transmission. For so many years, having digested domestic and foreign advanced technology and innovated, it has become newly designed, compact structure, convenient operation, easy installation and disassembly, beautiful shape and reliable performance. collapsible hoist have a special device for use in the construction of large metal containers and to a removable accessory applicable thereto. It facilitates construction procedures by reducing project times and costs. The collapsible device includes a column along which respective upper bodies and lower bodies that have been inserted into said column move. The bodies are linked by an extendable means. The upper bodies and lower bodies have a corresponding mechanism to lock or attach to the column. The column is mounted so that it pivots with respect to a base and the upper body has housing suitable for the insertion of a removable, fingernail-shaped accessory. Key benefits of GAOLI products: Durable and reliable due to first class materials and components Multiple safety features Modern and advanced technologies, continuous development and high efficiency Custom designs and platform modifications according to customer requirements Why GAOLI Elevators and Hoists? GAOLI construction hoists are world renowned and perform reliably in many countries and in extreme weather conditions worldwide. Continuous research and development, excellently equipped production facilities, first class components and materials, and an individual approach to customer needs are factors that contribute to the outstanding performance of our product.
• Maganese steel adopted to ensure high strength steel structure. • Modular design facilitates ease of transport, erection and dismantlement. • Collective control system. • For other configurations, contact GAOLI engineering for information.
• Maganese steel adopted to ensure high strength steel structure. • Modular design facilitates ease of transport, erection and dismantlement. • Collective control system. • For other configurations, contact GAOLI engineering for information.
Model
SC200/200 (Combined Car)
Playload capacity
kg
2000/2000
Erection load capacity
kg
1000/1000
Lifting device capacity
kg
200
Maximum lifting height
m
450
Speed (50Hz/380V)
m/min
36
Safety device
SAJ40-1.2
Hoist car dimension (L×W×H)
m
(2.2~3.2)×1.5×2.5
Mast section type (L×W×H)
mm
650×650×1508
Motor power (bevel wheel)
kw
2×2×11
Enclosure weight
kg
1480
Cage weight
kg
2×1500
Driving machine weight (bevel wheel)
kg
350
Mast section weight
kg
150 (δ=4.5)
170 (δ=6.3)
190 (δ=8.0)

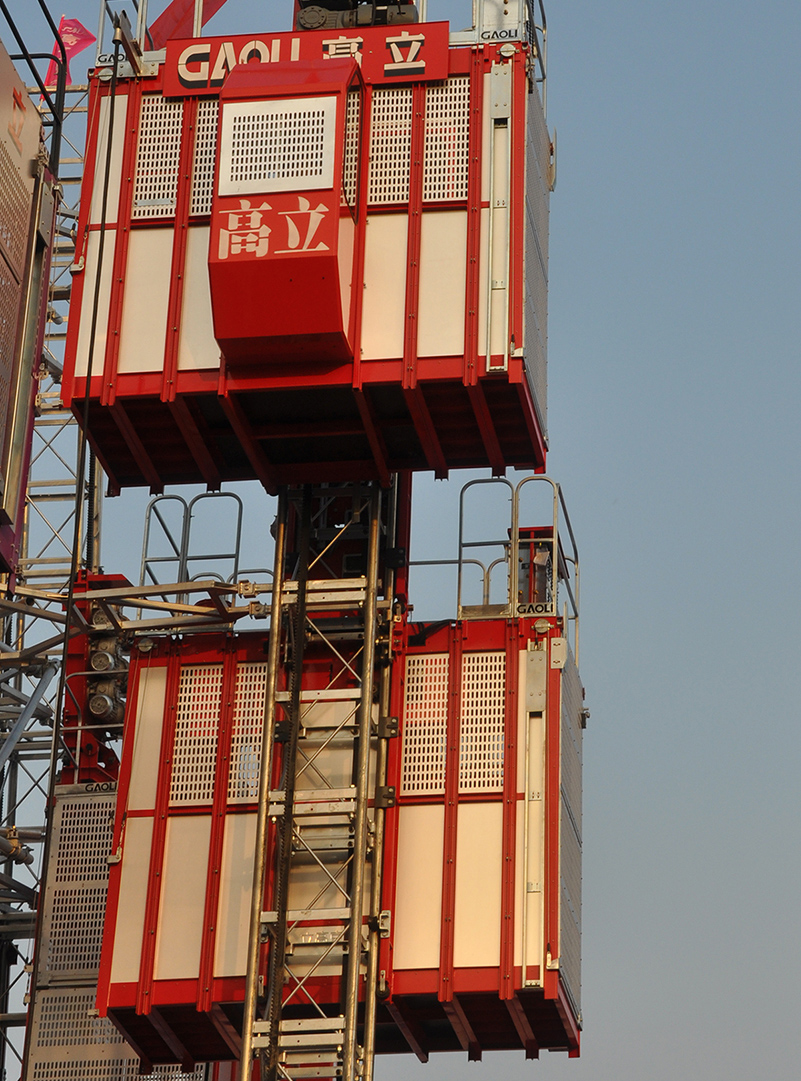

Combined building hoist adopts hoist car combined by several parts connected by high strength bolts. The car size is various for different working circumstances. In most case, the car length is 3.2m; for narrow spaces, the length can be reduced to be around 2m.
Model
SC200/200 (Combined Car)
Playload capacity
kg
2000/2000
Erection load capacity
kg
1000/1000
Lifting device capacity
kg
200
Maximum lifting height
m
450
Speed (50Hz/380V)
m/min
36
Safety device
SAJ40-1.2
Hoist car dimension (L×W×H)
m
(2.2~3.2)×1.5×2.5
Mast section type (L×W×H)
mm
650×650×1508
Motor power (bevel wheel)
kw
2×2×11
Enclosure weight
kg
1480
Cage weight
kg
2×1500
Driving machine weight (bevel wheel)
kg
350
Mast section weight
kg
150 (δ=4.5)
170 (δ=6.3)
190 (δ=8.0)
Combined building hoist adopts hoist car combined by several parts connected by high strength bolts. The car size is various for different working circumstances. In most case, the car length is 3.2m; for narrow spaces, the length can be reduced to be around 2m.
• Mast sections can be added without special equipment. • For instructions regarding the installation of the Combined-car Building Hoist, refer to the manufacturer’s manual. • Specifications and equipment shown are subject to change without prior notification. • This product must be used in a safe manner. Furthermore, the use of this product and its components must be in conformity with manufacturer’s specifications and in compliance with all applicable standards, codes, regulations, etc.
Please refer to manufacturer’s manual when installing, operating, servicing, repairing, jumping or dismantling hoist. For alternate configurations and special applications, contact GAOLI company for information.
• Mast sections can be added without special equipment. • For instructions regarding the installation of the Combined-car Building Hoist, refer to the manufacturer’s manual. • Specifications and equipment shown are subject to change without prior notification. • This product must be used in a safe manner. Furthermore, the use of this product and its components must be in conformity with manufacturer’s specifications and in compliance with all applicable standards, codes, regulations, etc.
Please refer to manufacturer’s manual when installing, operating, servicing, repairing, jumping or dismantling hoist. For alternate configurations and special applications, contact GAOLI company for information.
