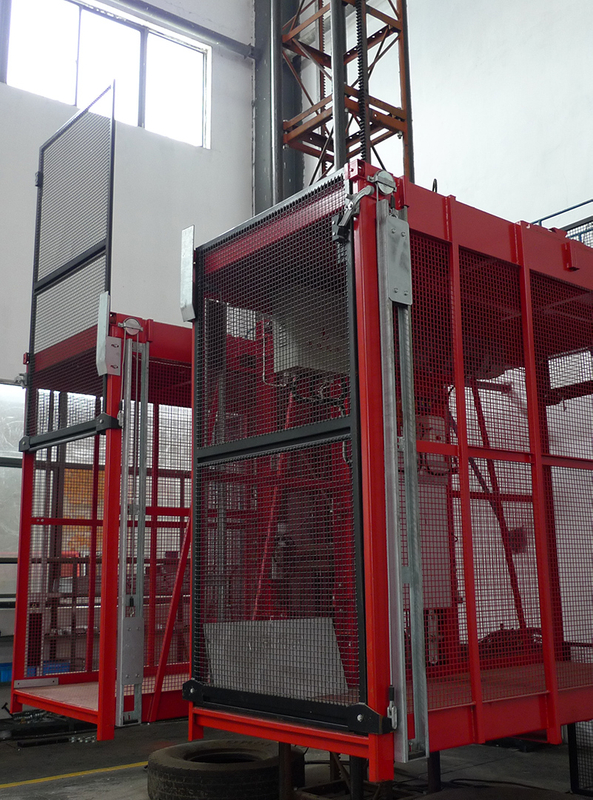

Material construction hoists bring a cost effective solution of vertical transportation of materials on a construction site. Material hoists help to massively increase productivity and safety, thereby saving time and money. GAOLI hoists are highly regarded in the industry as high quality equipment engineered and manufactured for reliability and longevity.
We deliver standard models as well as customized hoists to meet the specific requirements and needs of customers.

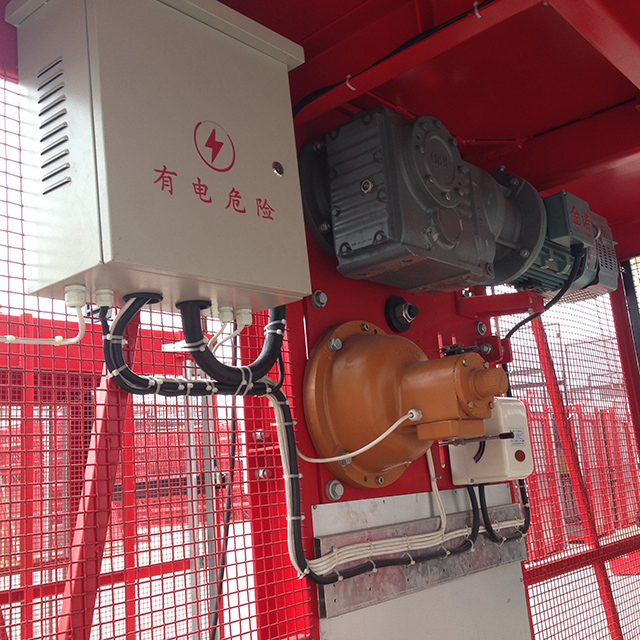

Product Feature: • Safety brake on transmission system of each hoist car • Electronic and mechanical door interlocks on hoist cars and base enclosure doors. • Safety hooks assure hoist car is securely attached to mast. • Stop and final limit switches that limit hoist car when reaching the end positions. • Phase failure replay system prevents hoist operation unless correct phase sequence is connected. • Heavy-duty overspeed governor which activates safeties that clamp directly onto mast legs • Overload detector to prevent hoist from loading passenger or material more than allowed. • Fault diagnostics system with display panel • Emergency cut-off system. • Spring buffers. • NO counterweights required.
Model
SC100/100 (For material only)
Playload capacity
kg
1000/1000
Erection load capacity
kg
1000/1000
Lifting device capacity
kg
200
Maximum lifting height
m
150
Speed (50Hz/380V)
m/min
28
Safety device
SAJ30-1.2
Cage platform dimension (L×W×H)
m
3.0×1.3×2.1
Mast section type (L×W×H)
mm
650×650×1508
Motor power (bevel wheel)
kw
11
Enclosure weight
kg
300
Cage weight (include transmission device)
kg
2×1000
Mast section weight
kg
150 (δ=4.5)
Remark: Material hoist is designed to transport goods but prohibited to carry persons.
Key benefits of GAOLI products: Durable and reliable due to first class materials and components Multiple safety features Modern and advanced technologies, continuous development and high efficiency Custom designs and platform modifications according to customer requirements
Why GAOLI Elevators and Hoists? GAOLI construction hoists are world renowned and perform reliably in many countries and in extreme weather conditions worldwide. Continuous research and development, excellently equipped production facilities, first class components and materials, and an individual approach to customer needs are factors that contribute to the outstanding performance of our product.
Material construction Hoists
Material construction hoists bring a cost effective solution of vertical transportation of materials on a construction site. Material hoists help to massively increase productivity and safety, thereby saving time and money. GAOLI hoists are highly regarded in the industry as high quality equipment engineered and manufactured for reliability and longevity.
We deliver standard models as well as customized hoists to meet the specific requirements and needs of customers.
Product Feature: • Safety brake on transmission system of each hoist car • Electronic and mechanical door interlocks on hoist cars and base enclosure doors. • Safety hooks assure hoist car is securely attached to mast. • Stop and final limit switches that limit hoist car when reaching the end positions. • Phase failure replay system prevents hoist operation unless correct phase sequence is connected. • Heavy-duty overspeed governor which activates safeties that clamp directly onto mast legs • Overload detector to prevent hoist from loading passenger or material more than allowed. • Fault diagnostics system with display panel • Emergency cut-off system. • Spring buffers. • NO counterweights required.
Model
SC100/100 (For material only)
Playload capacity
kg
1000/1000
Erection load capacity
kg
1000/1000
Lifting device capacity
kg
200
Maximum lifting height
m
150
Speed (50Hz/380V)
m/min
28
Safety device
SAJ30-1.2
Cage platform dimension (L×W×H)
m
3.0×1.3×2.1
Mast section type (L×W×H)
mm
650×650×1508
Motor power (bevel wheel)
kw
11
Enclosure weight
kg
300
Cage weight (include transmission device)
kg
2×1000
Mast section weight
kg
150 (δ=4.5)
Remark: Material hoist is designed to transport goods but prohibited to carry persons.
Key benefits of GAOLI products: Durable and reliable due to first class materials and components Multiple safety features Modern and advanced technologies, continuous development and high efficiency Custom designs and platform modifications according to customer requirements
Why GAOLI Elevators and Hoists? GAOLI construction hoists are world renowned and perform reliably in many countries and in extreme weather conditions worldwide. Continuous research and development, excellently equipped production facilities, first class components and materials, and an individual approach to customer needs are factors that contribute to the outstanding performance of our product.
• Safety brake on transmission system of each hoist car. • Electronic and mechanical door interlocks on hoist cars and base enclosure doors. • Safety hooks assure hoist car is securely attached to mast. • Automatic stop and final limit switches that limit hoist car when reaching the end positions. • Phase failure replay system prevents hoist operation unless correct phase sequence is connected. • Overload detector to prevent hoist from loading passenger or material more than allowed. • Fault diagnostics system with display panel. • Emergency cut-off system. • Spring buffers. • NO counterweights required.
• Safety brake on transmission system of each hoist car. • Electronic and mechanical door interlocks on hoist cars and base enclosure doors. • Safety hooks assure hoist car is securely attached to mast. • Automatic stop and final limit switches that limit hoist car when reaching the end positions. • Phase failure replay system prevents hoist operation unless correct phase sequence is connected. • Overload detector to prevent hoist from loading passenger or material more than allowed. • Fault diagnostics system with display panel. • Emergency cut-off system. • Spring buffers. • NO counterweights required.
• Maganese steel adopted to ensure high strength steel structure. • Modular design facilitates ease of transport, erection and dismantlement. • Collective control system. • For other configurations, contact GAOLI engineering for information.
• Maganese steel adopted to ensure high strength steel structure. • Modular design facilitates ease of transport, erection and dismantlement. • Collective control system. • For other configurations, contact GAOLI engineering for information.
• Mast sections can be added without special equipment. • For instructions regarding the installation of the Material Lifting Hoist, refer to the manufacturer’s manual. • Specifications and equipment shown are subject to change without prior notification. • This product must be used in a safe manner. Furthermore, the use of this product and its components must be in conformity with manufacturer’s specifications and in compliance with all applicable standards, codes, regulations, etc.
Please refer to manufacturer’s manual when installing, operating, servicing, repairing, jumping or dismantling hoist. For alternate configurations and special applications, contact GAOLI Company for information.
• Mast sections can be added without special equipment. • For instructions regarding the installation of the Material Lifting Hoist, refer to the manufacturer’s manual. • Specifications and equipment shown are subject to change without prior notification. • This product must be used in a safe manner. Furthermore, the use of this product and its components must be in conformity with manufacturer’s specifications and in compliance with all applicable standards, codes, regulations, etc.
Please refer to manufacturer’s manual when installing, operating, servicing, repairing, jumping or dismantling hoist. For alternate configurations and special applications, contact GAOLI Company for information.
